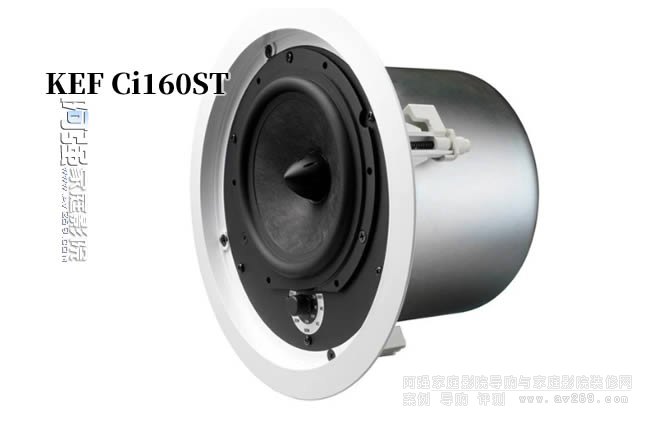

KEF Ci160ST可定壓式背景音樂吸頂音箱

Reproducing lower frequencies with confident accuracy is critical for achieving a satisfyingly full-bodied sound in public spaces, and with the dedicated long-throw 160mm (6.5in.) bass driver from KEF’s renowned iQ range, the Ci160ST delivers gloriously extended, articulate and distortion-free bass.



The tonal match is perfect with the rest of the new Ci Commercial Series, which are designed specifically for foreground music and music/paging applications in retail, commercial and hospitality environments. With back can, 70V/100V multi-tap transformers for distributed line systems and UL2043 safety approval for use in plenum spaces and UL1480-5 for fire protection signalling systems, it meets every requirement for interior use. The bezels and grilles can of course be finished to blend unobtrusively with the décor –and with KEF’s ingeniously simple fixing system, the units are exceptionally easy for the contractor to install.

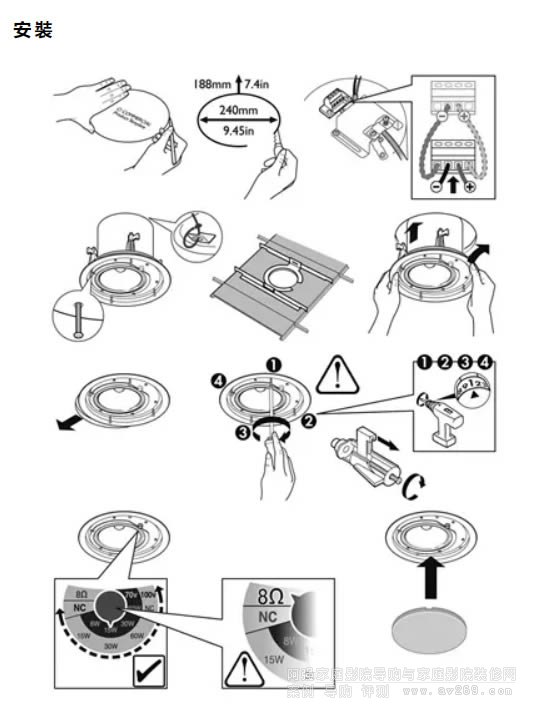

The Ci160ST is supplied with a C-ring mounting bracket and tile hanger for use in suspended ceilings. Like all KEF loudspeakers, this formidably competent subwoofer is built to KEF’s traditional high standards for reliable long term use.

應用場景：

對于要求高保真性能的高音質音樂和語音擴音應用場所，Ci 系列的 Ci160ST 揚聲器無疑是最理想的選擇。如：

休閒場所、酒吧、精品店

家庭影院系統

多房間系統

會議室和辦公室

機場、會議中心、酒店

演出劇院/音樂廳臨時使用

禮拜堂

體育賽場



阻抗

4 Ohms



靈敏度

85dB (2.83V/ 1m)



頻率響應

60 - 130Hz (+/-6dB) With back can/rear enclosure



分頻點

2.3kHz



驅動單元LF: 160mm



建議輸出功率20 - 100W



主要特點

Passive Subwoofer, UL2043 & UL1480-5 approved, 70V: 7.5W, 15W, 30W, 60W / 100V: 15W, 30W, 60W

圖樣尺寸

Diameter : 240mm (9.45in.)



安裝厚度

天花厚度(最大):38 毫米(1.5 英寸)

天花厚度(最小):7 毫米(0.28 英寸)



表面安裝深度

With back can : 185mm (7.28in.)



淨重

3.4 kg (7.48 lbs)



單位

*以每個計算
