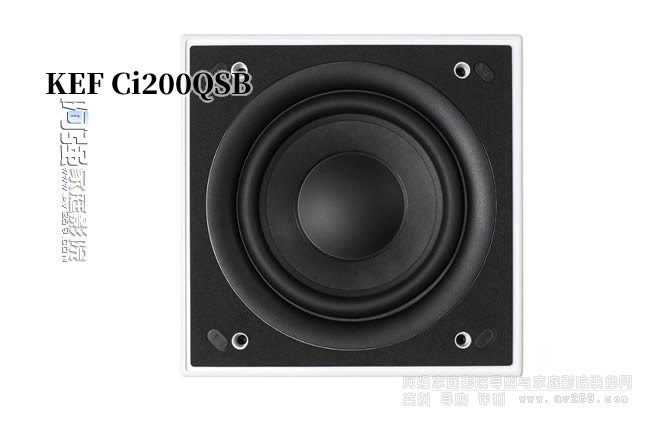

KEF Ci200QSB 低音嵌入音箱
配合 KEF 專利創新的 Uni-Q 同軸共點單元
Certified to THX ULTRA2 and THX SELECT2 standards, the formidable Ci200QSb-THX in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality.
主要特點
THX Certified Ultra2 / Select2
200mm (8in.) woofer unit with extended bass response
可涂色超薄邊飾 (UTB) 和磁性網罩與空間裝飾融于一體
安裝快捷簡便，可以通過狗腿彎孔固定于大多數表面
Can be used in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier for THX certified performance
Sold in Pairs
阻抗
6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
靈敏度
85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
分頻點
100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
低音: 200mm (8 in.)
建議輸出功率
10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
產品外部尺寸
Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
圖樣尺寸
238 x 238 mm (9.37 x 9.37 in.)
安裝厚度
天花厚度(最大):40 毫米(1.58 英寸)
天花厚度(最小):6 毫米(0.24 英寸)
表面安裝深度101.6mm (4 in.)
適配框架RIF200S
淨重3.3kg (7.28 lbs)
單位
*以每個計算
6 Ohm - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
靈敏度
85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
分頻點
100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
頻率響應
40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
低音: 200mm (8 in.)
建議輸出功率
10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
產品外部尺寸
Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
圖樣尺寸
238 x 238 mm (9.37 x 9.37 in.)
安裝厚度
天花厚度(最大):40 毫米(1.58 英寸)
天花厚度(最小):6 毫米(0.24 英寸)
表面安裝深度101.6mm (4 in.)
適配框架RIF200S
淨重3.3kg (7.28 lbs)
單位
*以每個計算
