quadral IWS定制安裝音箱系統雖然采用隱藏安裝，但音質毫不遜色，不管是聆聽音樂或是觀賞電影，您所安裝的音響系統都可以實現無瑕精準的聲音重放——清澈細膩、逼真震撼，絕不遜色于一套優秀的傳統揚聲器。這正是我們 IWS系列產品的優勢所在。
The quadral IWS Custom Installation Speaker System uses invisible(hidden) installation, however the sound quality is very outstanding. No matter for music listen or watch movie, the speaker system you installed can both realize accurate sound reproduction—Clear & Detail, Real & Shocking, they are not less than any of the traditional good speakers. This is the advantage of our custom installation lineups.
quadral IWS入墻式產品不僅能提供震撼的環繞聲性能，而且可以隱蔽安裝，與現代室內裝修設計形成整體風格融合，音箱將成為你的整體家裝的一部分。
The quadral IWS inwall products can not only provide shocking surrounding performance, but also be invisible installation, they will blend with the modern room decoration style, and the speakers will be a part of your home decoration.

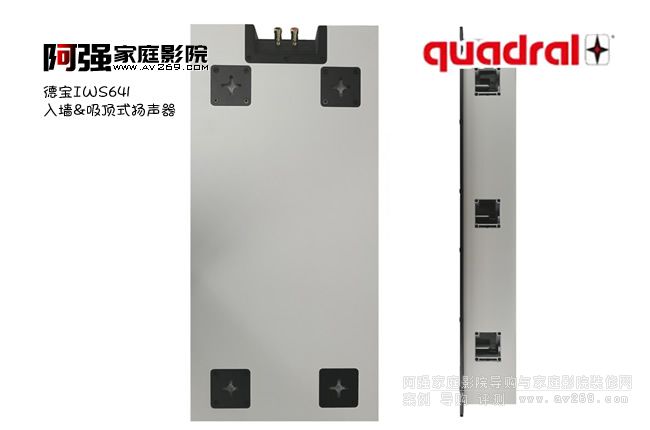

quadral IWS641系列音箱采用3音路密封式箱體設計，厚實堅固鋁合金前障板，達到消除諧振的效果。高音采用波導面板實現可控色散，提供優化的離軸和功率響應；5寸中音單體采用大型90 mm磁鐵結構，確保高效率和最佳T / S參數。大型32毫米音圈確保高功率處理 ，新型優化的編織玻璃纖維錐確保了大帶寬和低失真，通過有效的排氣和添加內部鋁短路環來穩定氣隙中的磁場，進一步減少了失真；6.5寸低音單體采用大直徑音圈，可實現更好的控制和功率處理，內置鋁合金場穩定環，可在高功率水平下減少失真，具有出色的深沉低音性能和動態。
The quadral IWS641 series speaker system uses sealed chamber 3 way system design, the thick solid aluminum front panel achieves the vibration noise cancellation effect. The tweeter uses waveguide plate achieves controllable dispersion, providing optimized off-axis and power response;
The 5”driver uses 90mm motor structure to ensure the high efficiency and best T/S data. The 32mm voice coil ensure high power, the latest optimizing woven glass fiber phase plug ensure the large andwidth & low THD, The magnetic field in the air gap can be stabilized by effective exhaust and adding internal aluminum short circuit ring, which can reduce distortion at high power level, and has excellent midrange, deep bass and dynamic performance.
The 6.5”driver uses big Outer Dimension Voice Coil for better control and power handling, The magnetic field in the air gap can be stabilized by effective exhaust and adding internal aluminum short circuit ring, which can reduce distortion at high power level, and has excellent midrange, deep bass and dynamic performance.
顏色：白色
阻抗：4歐姆
靈敏度：:92db（2.83V/1M）
頻率響應：65-30KHz
分頻點：240Hz/2.3kHz
驅動單元：LF:6.5INCH*2/MID5INCH/HF:1INCH
推薦功率：100-240W
總尺寸：H*W*D674mm x324mm x105mm
安裝深度：100mm
切割尺寸：H*W644mm x 294mm
SELECT COLOUR:White
NOMINAL IMPEDANCE: 4 Ω
SENSITIVITY:92db（2.83V/1M）
FREQUENCY RESPONSE:65-30KHz
CROSSOEER FREQENCIES:240Hz/2.3kHz
DRIVE UNITS:LF:6.5INCH*2/MID5INCH/HF:1INCH
RECOMMENDED AMPLIFIER POWER:100-240W
PRODUCT EXTERNAL DIMENSIONS:H*W*D674mm x324mm x105mm
MOUNTING DEPTN FROM SURFACE:100mm
CUT OUT DIMENSIONS:H*W644mm x 294mm
