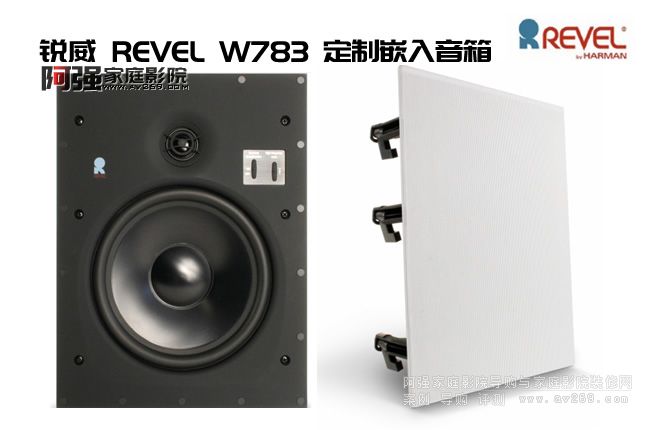

銳威W783入墻音箱 8寸Revel音箱

銳威W783入墻音箱參數指標
建議使用放大器功率:10-150 watts RMS
系統靈敏度:89db/2.83v/m
系統阻抗8Ohms
低音單元8“(203mm)黑色納米顆粒涂層陶瓷復合(MCC錐盆、聚合物鑄造框架低音揚聲器
高音單元:1“(25.4mm)鋁振膜球頂外置波號輻射的高音揚聲器
高音電平控制:3階
外形尺寸:高330mmx寬254mm
低音邊界補償：開/關
安裝深度:96mm
開孔尺寸:高303mmx寬227mm
重量:2.9kg(凈重)、3.5kg(含包裝)

Specifications
DESCRIPTION
8" In-Wall Loudspeaker
HIGH-FREQUENCY DRIVER COMPONENTS
1" aluminum dome swiveling high-output tweeter with waveguide
LOW-FREQUENCY DRIVER COMPONENTS
8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
LOW FREQUENCY EXTENSION
High Frequency Extension: 3-position HF level contr /Low Frequency Extension: LF boundary compensation
MOUNTING
C-2 mounting mechanism • Compatible with wall material thickness range: 0.5" – 1.0" (1.3 cm – 2.5 cm)
DEPTH
Mounting depth: 3.7" (9.4 cm)
WEIGHT
7.1 lb (3.2 kg) / Shipping weight: 8.6 lb (3.9 kg)
FEATURES
Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm
