產(chǎn)品價格參考/個￥29000.00

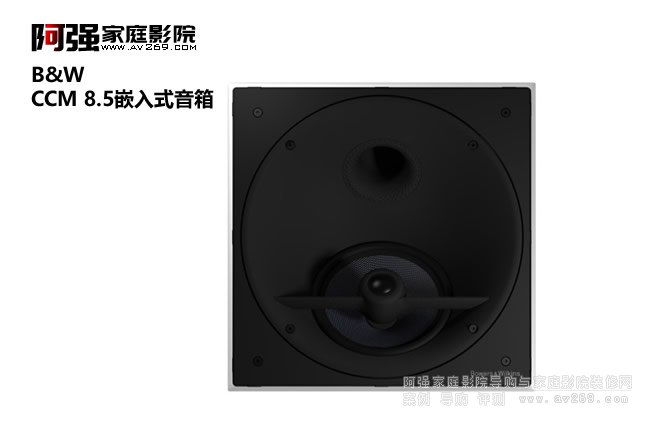

B&W CCM 8.5斜面吸頂音箱，CCM 8.5 is a two-way in-ceiling loudspeaker, which offers high-quality acoustics in an incredibly discreet package. It features a Carbon Braced Tweeter and a single 7inch bass/mid Aramid Fiber driver, with anti-resonance plug. All the drive units are located in a continuously rotatable mini baffle, which allows for the custom installation version of ‘toeing in’ the loudspeaker.
說明
2-way in ceiling loudspeaker
建議推動功率 120W
單體
1x 25mm (1in) Aluminium Carbon Braced Tweeter with Nautilus Tube™
1x 180mm (7in) woven blue Aramid Fiber cone bass/midrange driver with anti-resonance plug
靈敏度 88dB
頻率范圍 35Hz - 40kHz 阻抗 8Ω (minimum 3.3Ω)
尺寸
Frame outer 351mm x 351mm (13.8 in x 13.8in)
Cut-out 331mm x 331mm (13 in x 13in)
Cut-out allowance 8mm (0.31in)
Protrusion 8mm (0.31in)
Back box 701mm x 343mm x 177mm
(27.6 in x 13.5 in x 6.9in) 網(wǎng)罩選項 方形
